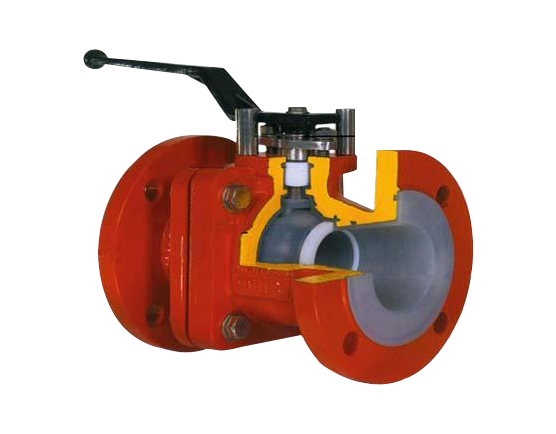

MANUAL LINED VALVE » Lined Ball Valves

Lined Ball Valves offer economical solutions for the vast majority of chemical applications while maintaining the highest possible degree of performance in terms of in-line leakage and fugitive emissions.

The lower torque of our lined ball valve designs permits use of smaller actuators, allowing cost reductions and creating space saving opportunities.

The dynamic body joint design retains pressure boundary during thermal cycles.

TECHNICAL SPECIFICATION

Lined Ball Valve
TYPE OF VALVE : ON – OFF TYPE, 2 PIECE DESIGN
BODY : ASTM A 216 GR. WCB (PFA-FEP LINED)
  ASTM A 351 GR. CF8 / CF8M (PFA-FEP LINED)
BALL : ASTM A 351 GR. CF8 / CF8M (PFA-FEP LINED)
STEM : AISI 410 / AISI 304 (PFA / FEP LINED)
MANUFACTURING STD. : BS – 5351
WORKING PRESSURE

: UP TO 10 KG/ CM2

END CONNECTION : FLANGED END TO SUIT ANSI B 16.5 (150#)
LEAKAGE CLASS : CLASS VI
SEAT & SEAL : PTFE
TEMPERATURE : UPTO 220° C
