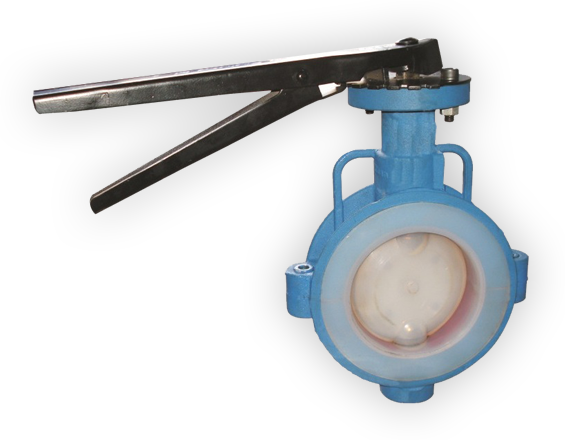

MANUAL LINED VALVE » Lined Butterfly Valves

Lined Butterfly valves provide for resistance to permeation which leads to an extension of product life and greater operator safety as it does not permit atmospheric leakage.

Low torque results in several benefits such as smaller operators taking up less space, ease of operation and cost savings with less expensive automation packages.

An added benefit is atmospheric sealing integrity and no manual adjustment over the life of the valve.

TECHNICAL SPECIFICATION

Lined Butterfly Valves
BODY :  CAST IRON ASTM A126 CLASS B ( FEP I PFA LINED)
   DUCTILE IRON ASTM A536 GRADE 65-45-12 ( FEP I PFA LINED)
   CARBON STEEL ASTM A216 GRADE WCB ( FEP I PFA LINED )
   STAINLESS STEEL ASTM A351 GRADE CF8 I CF8M ( FEP I PFA LINED
DISC :  CF8 I CF8M I CF3M I SGI ( FEP I PFA LINED )
SEAT :  ( FEP I PFA LINED ).
SHAFT :  AISI 410 I CF8 I CF8M I CF3M ( FEP I PFA LINED )
VALVE TYPE :  CENTRIC DISC BUTTERFLY VALVE WITH A PTFE LINED BODY
BODY TYPE :  SHORT WAFER (SANDWICHED BETWEEN FLANGES) TWO PIECES DESIGN
SEAT TYPE :  LINED WITH THE BODY
END CONNECTION :  WAFER SANDWICHED (LUG TYPE ON REQUEST)
PRESSURE RATING :  PN 10 I PN 16 (ON REQUEST)
OPER. TEMP. RANGE :  UPTO 220° C
SEAT LEAKAGE :  TIGHT SHUT OFF
